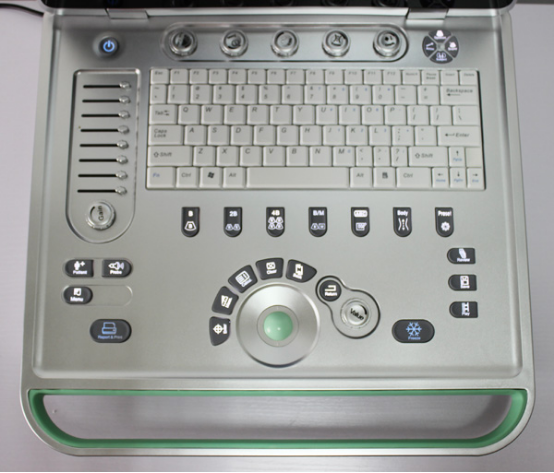

B/W Ultrasound scanner work with laser/inkjet printers,Laptop type ultrasound doppler,USB

SG Medical Devices company
Contact Now

B/W Ultrasound scanner work with laser/inkjet printers,Laptop type ultrasound doppler,USB

Place of Origin : China

Brand Name : SG

Certification : CE

Model Number : SG-S9

Display : 15 inch high definition LED screen

All digital : PC based

Multi language : Powerful information management

Complete application software packages : 8GB permanent storage

USB ports : Compatible with laser/inkjet printers

DICOM : built-in battery

2 probe connector : can use 3 hours use battery

Standard configuration : with a 3.5MHz convex probe

optional 1 : 7.5MHz linear probe

optional 2 : 6.5MHz Trans-vaginal probe

optional 3 : 5.0MHz R20mm micro-convex probe

optional 4 : 3.5MHz R40/60mm convex probe

optional 5 : Veterinary rectal probe

optional 6 : 3D image function

warranty : one year

MOQ : 1pcs

Packaging Details : suitable box

Delivery Time : 2 weeks

Payment Terms : T/T

Supply Ability : 500pcs/month

Contact Now

SG-S9 B/W Ultrasound scanner work with  laser/inkjet printers,Laptop type ultrasound doppler,USB

B/W Ultrasound scanner work with laser/inkjet printers,Laptop type ultrasound doppler,USB

Feature:

-15 inch LED screen
-Pretty, thin, and light
-2 probe connector
-Full digital imaging technology, crystal-clear Image
-3D Image function
-PC based, abundant functions
-Detail report edit function
-Powerful image management
-Large volume storage image and cineloop
-Not only can save image but also can save video
-DICOM display and transfer
-Compatible with laser/inkjet printers
-Abundant calculation functions and can select different calculate formula
-Can save and select some groups inspect parameter so save time to adjust per time
-Built-in battery(Work 5 hours)
-Multilingual(English, French, German, Spanish and so on)
-Good aluminum trunk packing
-Multiple language:  English, French, German, Spanish,  Russian, Italian, Portuguese, etc.


Specification:
-Maximum Scanning Depth: max. 250mm
-Multi-frequency: 5 segment frequencies
-Cine Loop: max. 1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM;
-Real-time Zoom on B mode
-Image gray scale: 256 level gray scale
-Image processing: Pre-processing, after-processing, dynamic range, frame rate,  line average, edge;
  enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Measurement and calculation(human):
  B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
  M mode: heart rate, time, distance, slope and stenosis;
  Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
  Obstetric: gestation age, fetal weight, AFI;
  Cardiology: LV, LV function, LVPW, RVAWT;
  Urology: transition zone volume, bladder volume, RUV,   prostate, kidney;
  Small parts: optic, thyroid, jaw and face.
  Veterinary:  Cattle: BPD, CRL, TD;  Horse: GA; Dog: GS; Cat: HD, BD;  Sheep: BPD, CRL, TD
-Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image store: by hardisk or USB disk, can save image and also video(avi or swf format)
-3D image function(function): can get rebuilt 3D image by any probe
-Work time by built-in battery: about 5 hours
-Monitor: 15 inch color LED screen
-Probe Connector:2
-Dimension: 362mm×340mm×60mm
-Weight: Around 4.8Kg

Standard Configuration:
One main host, one convex probe(3.5MHz), one power adapter, one aluminum trunk.

Optional:
Linear, Trans-vaginal, Micro-convex,Rectal Probe; Bag; Trolley; Laser Printer.
